Backend for Co-Calibration Demonstrator at FB 9.4

This work is part of the showroom for "Metrology for Digitalization" which is created by department 9.4 at the Physikalisch-Technische Bundesanstalt.

Run the backend

You can either start up the docker image:

# if run behind a proxy, check `/etc/systemd/system/docker.service.d/http-proxy.conf` for config

# build image
docker build -t backend_image .

# create+start container from image
docker run -d --name cocal_backend -p 8000:80 backend_image

# stop container
docker stop cocal_backend

# restart container
docker start cocal_backend

# remove container
docker rm cocal_backend

Or setup a python environment and directly run

uvicorn app.main:app --reload

API documentation

The API is documented automatically at http://127.0.0.1:8000/docs

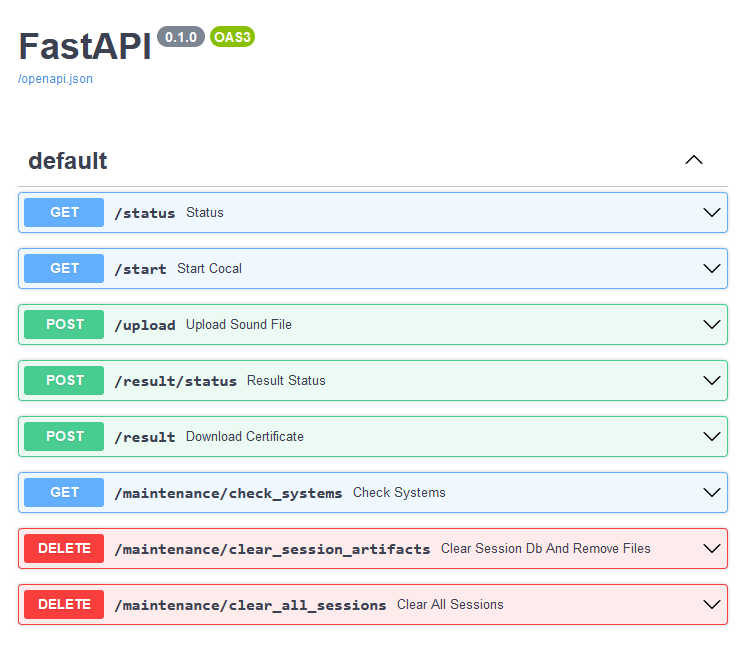

This should look like:

OpenAPI Screenshot

Authors

  • Maximilian Gruber

Useful commands

interactive shell inside running container: docker exec -it cocalibration_networking_layer-backend-1 /bin/bash

copy files from container to host:

docker cp cocalibration_networking_layer-backend-1:/code/sql_app.db ~/Desktop/inspection
docker cp cocalibration_networking_layer-backend-1:/code/sessions/ ~/Desktop/inspection
